1960-1963 Chevy Truck Billet Aluminum 6 Gauge Panel w/ Classic Instruments Gauges

14504_GS

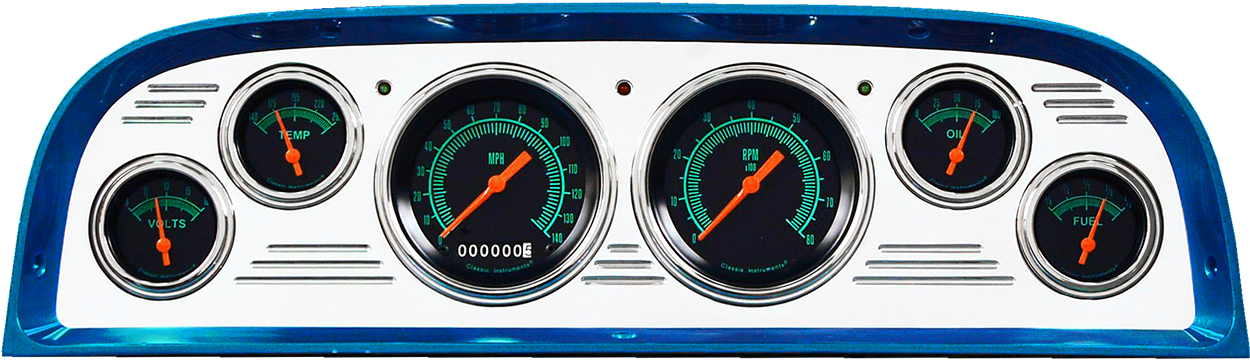

14504-GS 1960-63 Chevy Truck w/ Classic Instruments G/Stock Gauges

1960-1963 Chevy Truck Billet Aluminum 6 Gauge Panel w/ Classic Instruments Gauges - Image 2

14504VB_700

14504-VB (Velocity Black)

1960-1963 Chevy Truck Billet Aluminum 6 Gauge Panel w/ Classic Instruments Gauges - Image 3

HR00SLF

HR00SLF (Hot Rod)

1960-1963 Chevy Truck Billet Aluminum 6 Gauge Panel w/ Classic Instruments Gauges - Image 4

WH55SLF

WH00SLF (White Hot)

1960-1963 Chevy Truck Billet Aluminum 6 Gauge Panel w/ Classic Instruments Gauges - Image 5

VT55SLF

VT55SLF (Vintage)

1960-1963 Chevy Truck Billet Aluminum 6 Gauge Panel w/ Classic Instruments Gauges - Image 6

GS55SLF

GS55SLF (G/Stock)

1960-1963 Chevy Truck Billet Aluminum 6 Gauge Panel w/ Classic Instruments Gauges - Image 7

SS55SLF

SS55SLF (Silver Series)

1960-1963 Chevy Truck Billet Aluminum 6 Gauge Panel w/ Classic Instruments Gauges - Image 8

SG55SLF

SG55SLF (SG Series)

1960-1963 Chevy Truck Billet Aluminum 6 Gauge Panel w/ Classic Instruments Gauges - Image 9

TR55SLF

TR55SLF (Traditional)

1960-1963 Chevy Truck Billet Aluminum 6 Gauge Panel w/ Classic Instruments Gauges - Image 10

CW00SLF

CW00SLF (Classic White)

1960-1963 Chevy Truck Billet Aluminum 6 Gauge Panel w/ Classic Instruments Gauges

Name: 1960-1963 Chevy Truck Billet Aluminum 6 Gauge Panel w/ Classic Instruments Gauges
SKU: 14504-CI
Availability: InStock

$962.50

Includes aluminum dash insert, Classic Instruments gauges & LED lights (turn signal & high beam indicators).

Gauge series choices:

Hot Rod
White Hot
Vintage
G/Stock
Silver Series
SG Series
Traditional
Classic White

Gauges include:

3 3/8” electric speedometer
3 3/8″ tachometer
2 1/8” oil pressure
2 1/8” water temperature
2 1/8” voltmeter
2 1/8” fuel level (choose ohm range)
Includes oil pressure, water temperature, & speedometer senders.

A fuel sender will be included when 240-33 ohms is selected for the fuel gauge.

Mounts into stock bezel (not included).

Gauge Panel Finish

Gauge Series

Fuel Gauge Options

Senders

Clear

Lens Upgrade (scroll down for image)

Flat Lenses

Curved Lenses (+$25.00)

Optional Information Screen (Scroll down for image)

No Upgrade

Optional Information Screen (+$40.00)

SKU: 14504-CI Category: 1960-1963 Chevy Truck Gauge Panels Tags: 60 61 62 63 Chevy Truck Gauges, Classic Instruments Gauges

Description

**Hot Rod information screen (optional)**

Classic Instruments is excited to share this all-new hybrid gauge that successfully melds the nostalgic taste of analog gauges with the modern convenience of a digital readout. The new screen offers the end-user the ability to display an odometer, which “rolls” just like a traditional mechanical odometer, a digital speed readout in either miles per hour or kilometers per hour, as well as a trip meter. Additionally, the user can select whether the display uses English or Metric units and each new speedometer is equipped with a step-by-step calibration mode and enhanced diagnostic features.

Additional information

Weight	7.75 lbs
Dimensions	19 × 11.5 × 5.75 in
Gauge Panel Finish	Brushed Finish, Polished Finish
Gauge Series	Hot Rod, White Hot, Vintage, G/Stock, Silver Series, SG Series, Traditional, Classic White
Fuel Gauge Options	240-33 ohms (includes sender), 0-90 ohms (late GM), 0-30 ohms (early GM), 75-10 ohms (pre-87 Ford)
Senders	GM (non-LS), LS senders, Ford senders, Mopar senders
