15659-PH 1962-66 GMC Truck Gauge Panel w/ AutoMeter Phantom Gauges

ATM5880 (Phantom 140 MPH GPS Speedometer)

ATM5880-M (225 KPH GPS Speedometer)

ATM5887 (Phantom 120 MPH Electric Speedometer)

ATM5887-M (Phantom 190 KPH Electric Speedometer)

ATM5892 (Phantom 120 MPH Mechanical Speedometer)

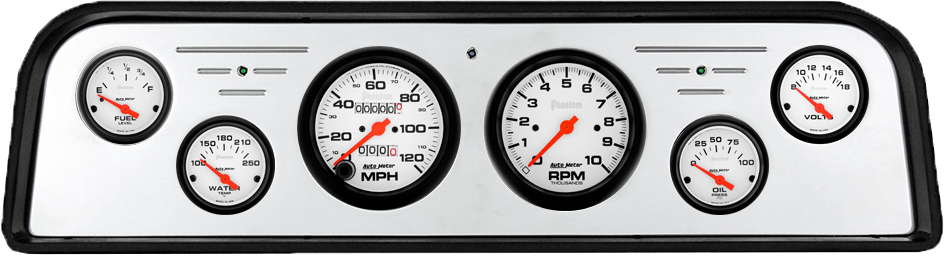

1962-1966 GMC Truck Billet Aluminum Gauge Panel w/ Auto Meter Phantom Gauges

Name: 1962-1966 GMC Truck Billet Aluminum Gauge Panel w/ Auto Meter Phantom Gauges
SKU: 15659-PH
Availability: InStock

Price range: $819.50 through $1,110.95

Includes aluminum gauge panel, Auto Meter Phantom gauges, & LED lights (turn signal & high beam indicators).

Gauges include:

3 3/8″ speedometer (choose from drop down list)
3 3/8″ 10,000 RPM tachometer
2 1/16″ 100 PSI electric oil pressure
2 1/16” 100-250 F water temperature
2 1/16” 8-18 VDC voltmeter
2 1/16” fuel level (choose from drop down list)
Sending units are included for the oil pressure & water temperature gauges.

Mounts into stock bezel (must cut to fit).
Installation Instructions
WARNING: This product can expose you to Lead which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Gauge Panel Finish

Speedometer Options

Fuel Gauge Options

Clear

Additional information

Weight	7 lbs
Dimensions	23 × 9 × 6 in
Gauge Panel Finish	Brushed Finish, Polished Finish
Speedometer Options	120 MPH Mechanical, 120 MPH Electric, 190 KPH Electric, 140 MPH GPS, 225 KPH GPS
Fuel Gauge Options	240-33 ohms (works w/ ATM3262), 0-90 ohms (late GM), 0-30 ohms (early GM), 75-10 ohms (pre-87 Ford)
