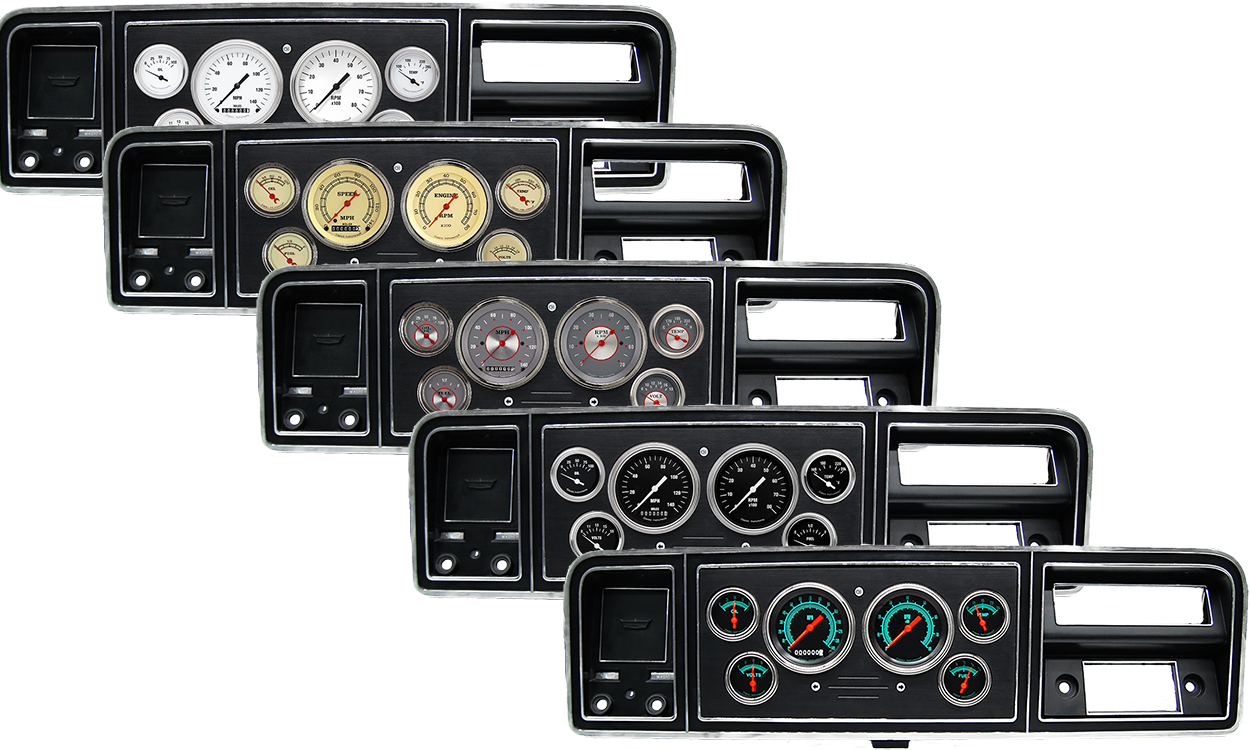

25064_collage
Boese Engineering 1973-1979 Ford Truck Gauge Panels w/ Classic Instruments Gauges
25064GS_2022

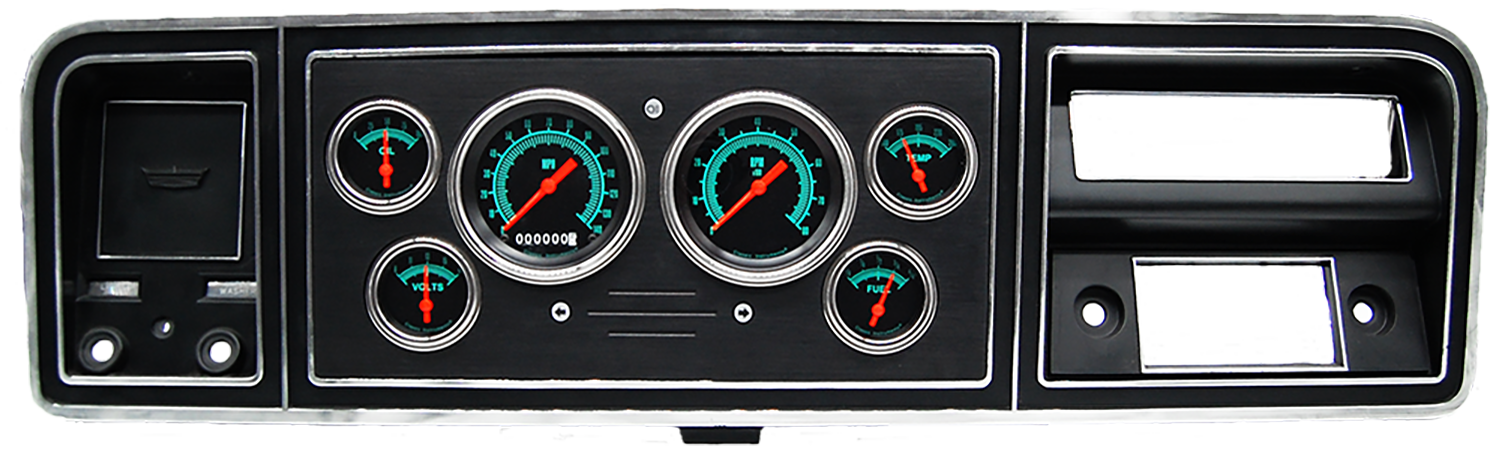

25064-GS 1973-1979 Ford Truck Gauge Panel w/ Classic Instruments G/Stock Gauges
25064HR_2022

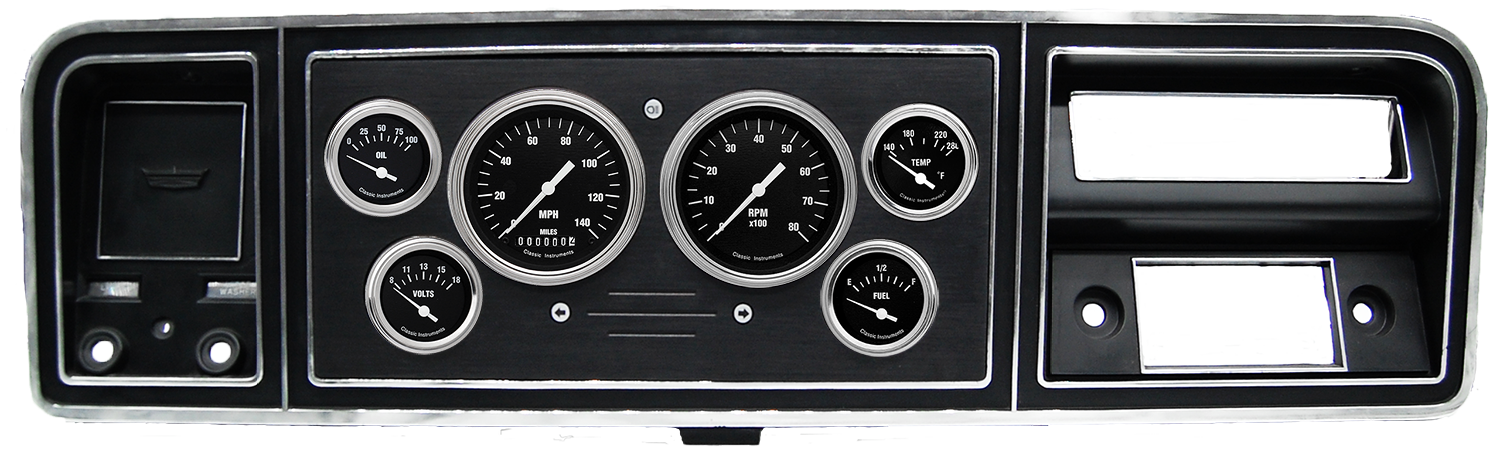

25064-HR 1973-1979 Ford Truck Gauge Panel w/ Classic Instruments Hot Rod Gauges
25064SS_2022

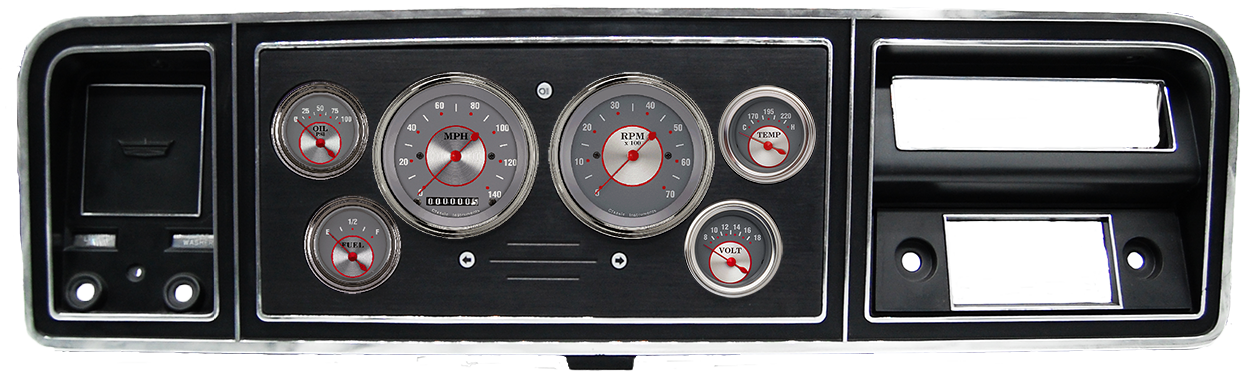

25064-SS 1973-1979 Ford Truck Gauge Panel w/ Classic Instruments Silver Series Gauges
25064VT_2022

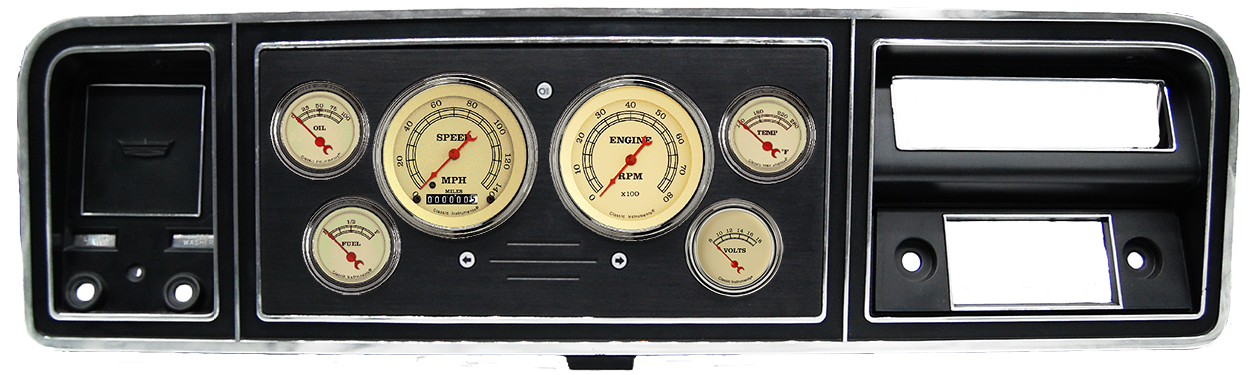

25064-VT 1973-1979 Ford Truck Gauge Panel w/ Classic Instruments Vintage Gauges
25064WH_2022

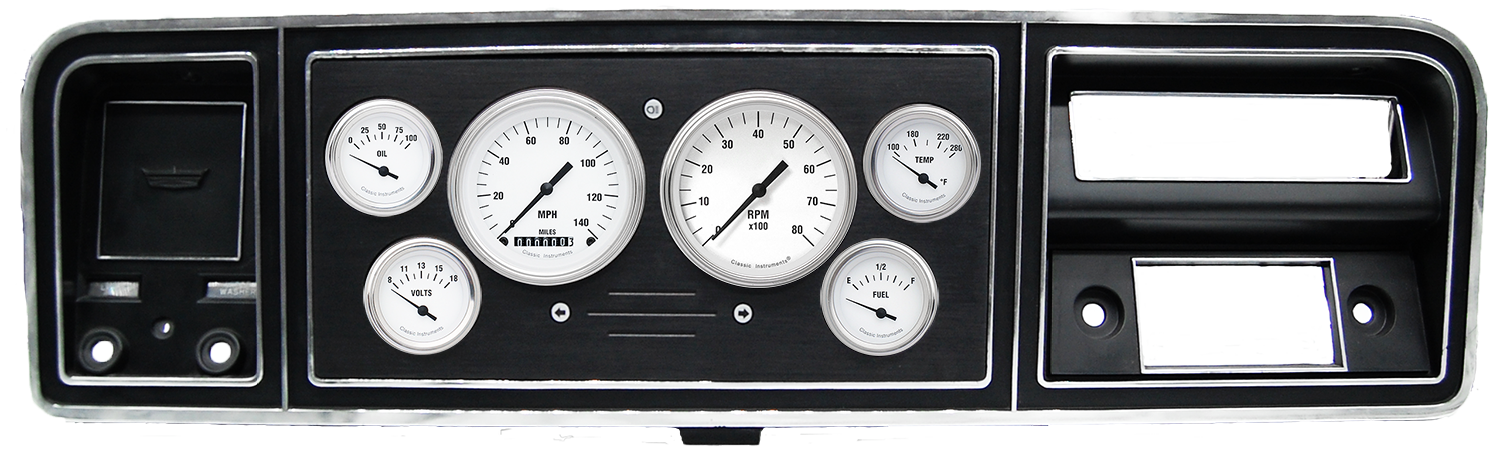

25064-WH 1973-1979 Ford Truck Gauge Panel w/ Classic Instruments White Hot Gauges

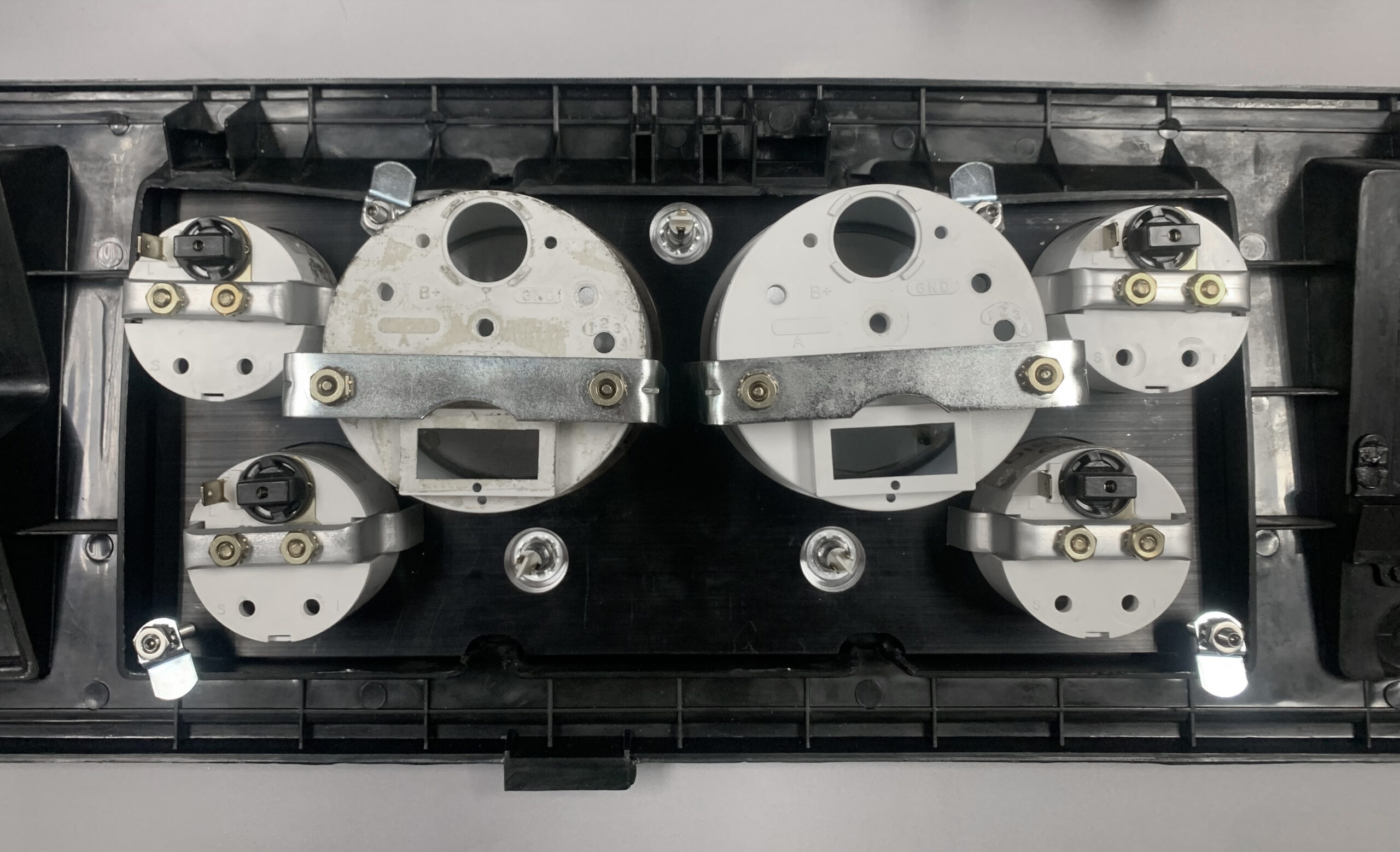

2506x_Install
1973-1979 Ford Truck w/ Classic Instruments
1973-1979 Ford Truck Aluminum Gauge Panels w/ Classic Instruments Gauges
$989.95
Includes brushed & black anodized aluminum gauge panel, Classic Instruments gauges & LED turn signal & high beam indicators. ** Outside bezel NOT included. **
Gauge series choices:
- Hot Rod
- White Hot
- Vintage
- G/Stock
- Silver Series
Gauges include:
- 3 3/8” electric speedometer
- 3 3/8” tachometer
- 2 1/8” oil pressure
- 2 1/8” water temperature
- 2 1/8” voltmeter
- 2 1/8” fuel level (choose ohm range)
- Includes oil pressure, water temperature, & speedometer senders.
A fuel sender will be included when 240-33 ohms is selected for the fuel gauge.
Mounts into stock Bezel (Not Included).
Description
Additional information
| Weight | 7.75 lbs |
|---|---|
| Dimensions | 19 × 11.5 × 5.75 in |
| Gauge Series | Hot Rod, White Hot, Vintage, G/Stock, Silver Series |
| Fuel Gauge Options | 75-10 ohms (works w/ stock sender), 240-33 ohms (includes universal style sender), 0-90 ohms (late GM), 0-30 ohms (early GM) |
| Senders | GM (non-LS), LS senders, Ford senders, Mopar senders |
