25063_DB

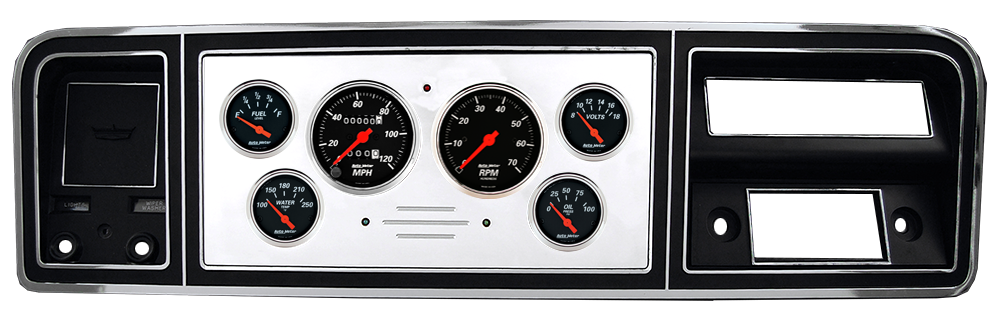

25063_DB 1973-79 Ford Truck Gauge Panel w/ AutoMeter Designer Black Gauges
25063_AW

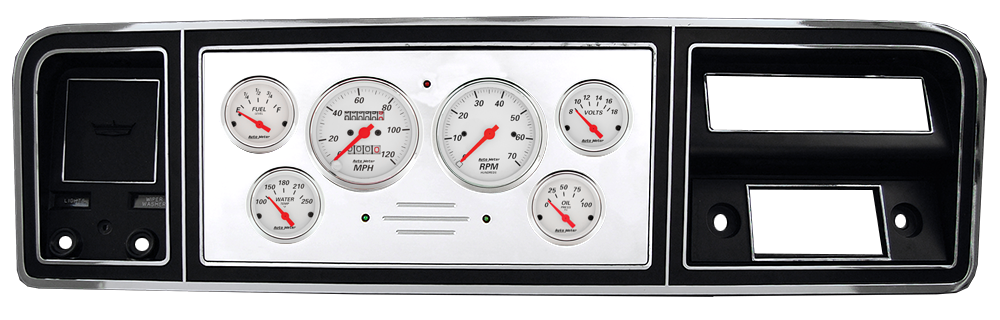

25063-AW 1973-79 Ford Truck Gauge Panel w/ AutoMeter Arctic White Gauges
25063_OB

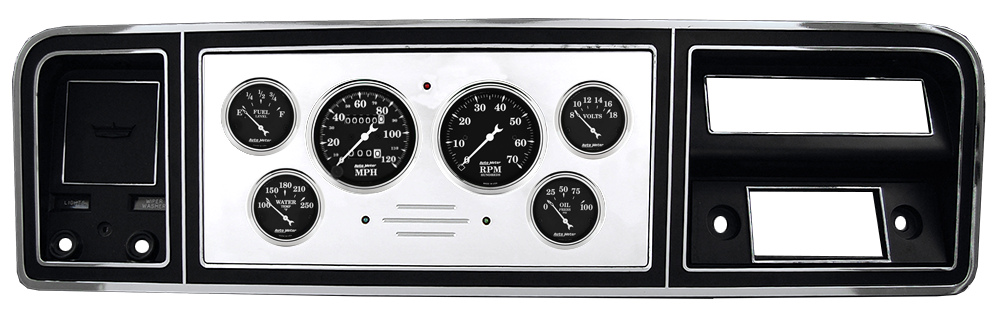

25063-OB 1973-79 Ford Truck Gauge Panel w/ AutoMeter Old Tyme Black Gauges
25063_OW

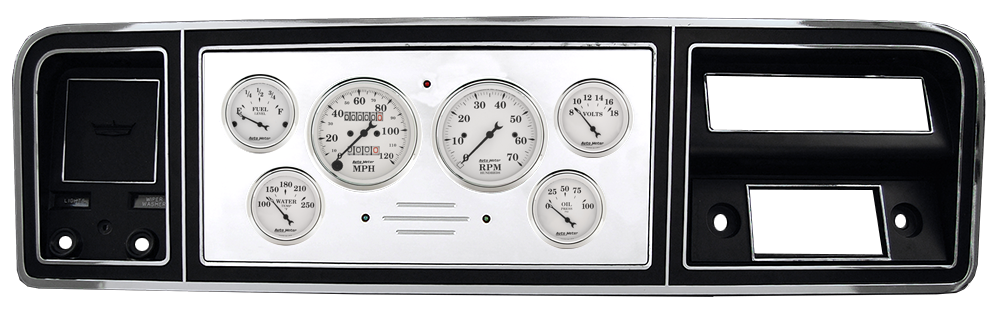

25063-OW 1973-79 Ford Truck Gauge Panel w/ AutoMeter Old Tyme White Gauges
25063_AB

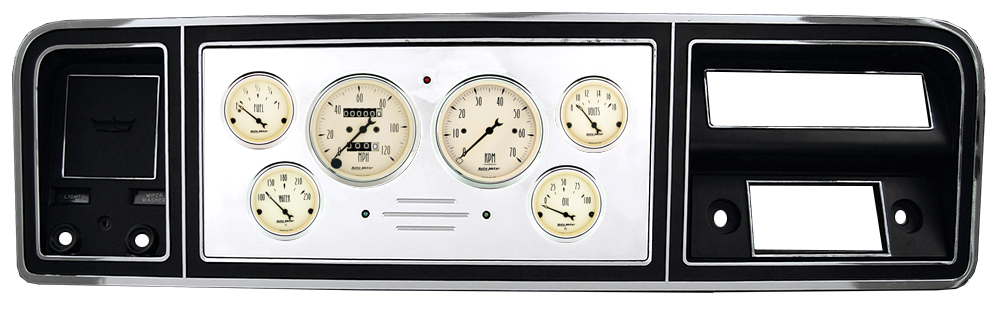

25063-AB 1973-79 Ford Truck Gauge Panel w/ AutoMeter Antique Beige Gauges
1973-1979 Ford Truck Billet Aluminum Gauge Panel w/ Auto Meter Street Rod series gauges
Price range: $758.95 through $813.95
Includes aluminum dash insert, Auto Street Rod series gauges & turn signal/high beam indicators.
Gauge series choices:
- Old Tyme Black
- Old Tyme White
- Antique Beige
- Designer Black
- Arctic White
Gauges include:
- 3 1/8″ speedometer (choice of mechanical, electric, or metric)
- 3 1/8″ 7,000 RPM tachometer
- 2 1/16″ 100 PSI electric oil pressure
- 2 1/16” 100-250 F electric water temperature
- 2 1/16” 8-18 VDC voltmeter
- 2 1/16” fuel level (choose ohm range from drop down list)
- Sending units are included for the oil pressure & water temperature
Mounts into stock bezel (not included). Must be cut to fit.
California Residents: Prop 65 WARNING Birth Defects and Reproductive Harm. For more information go to www.P65Warnings.ca.gov.
Description
Feature Points- Traditional incandescent lighting illuminates around the perimeter of the dial
- Kit includes fuel level sender (240E/33F), oil pressure sender, water temperature sender, bulb and socket assemblies, red and green bulb covers, mounting hardware, and detailed instructions for installation.
- Fuel Sender 3262 – Oil Sender 2242 – Water Sender 2258
- 3/8″ NPT and 1/2″ NPT adapter fittings
- Brackets Included
Additional information
| Weight | 7 lbs |
|---|---|
| Dimensions | 22 × 9 × 5 in |
| Gauge Panel Finish | Brushed Finish, Polished Finish |
| Speedometer Options | 120 MPH Mechanical, 120 MPH Electronic, 190 KPH Electronic |
| Gauge Series | Designer Black, Old Tyme White, Old Tyme Black, Arctic White, Antique Beige |
| Fuel Gauge ohm range | 75-10 ohms (works w/ stock sender), 0-90 ohms (late model GM), 0-30 ohms (Early GM), 240-33 ohms (works w/ ATM3262) |
