2137_CB
ATM2137-CB (1973-87 Chevy Truck Instrument Panel w/ Auto Meter Cobalt Gauges)
ATM6289
ATM6289 (Auto Meter Cobalt 5" 160 MPH Electronic Speedometer)
ATM6281
ATM6281 (Auto Meter Cobalt 5" 160 MPH GPS Speedometer)
2137
ATM2137 (1973-87 Chevy Truck ABS Instrument Panel)

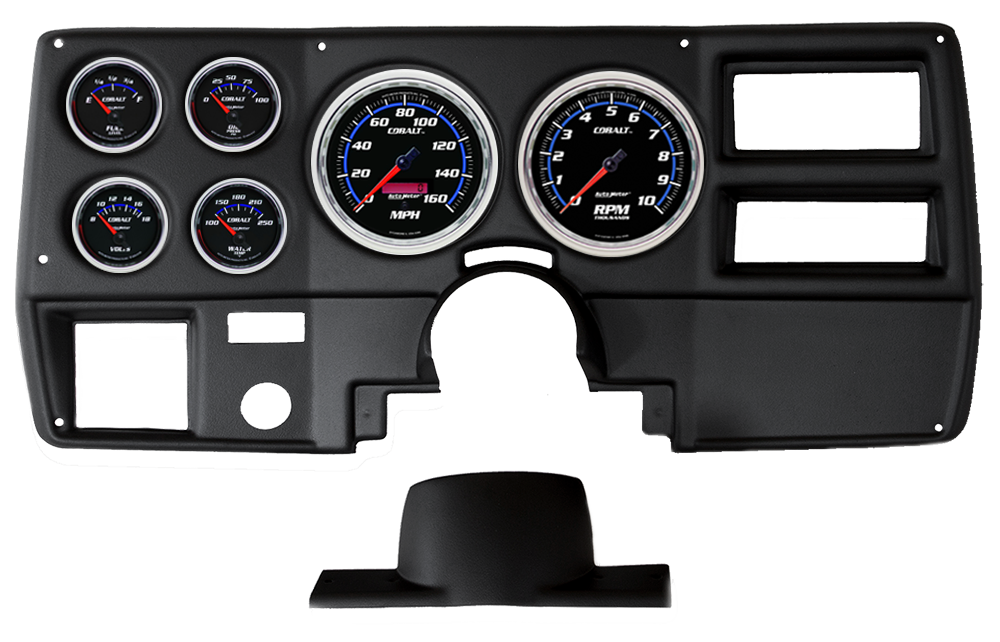

1973-1983 Chevy C/K Series Truck Auto Meter Direct Fit ABS Instrument Panel w/ Auto Meter Cobalt Gauges
Price range: $1,523.50 through $1,743.50
Includes ABS Instrument panel & Auto Meter Cobalt gauges
Gauges include:
- 5? 160 MPH speedometer (choose from drop down list)
- 5? 10,000 RPM tachometer
- 2 1/16? 100 PSI electric oil pressure
- 2 1/16” 100-250 F electric water temperature
- 2 1/16” 8-18 VDC voltmeter
- 2 1/16” fuel level (choose from drop down list)
- Sending units are included for the oil pressure & water temperature gauges
Direct Fit replacement for OEM instrument bezel in Chevrolet C/K Series Truck 73-83, Chevy/GMC Suburban and K5 Blazer 73-91 made from thermoformed UV protected ABS material.
Description
Cobalt Feature Points- Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
- Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
- These highly accurate GPS Speedometers include an omnidirectional 10 Hz antenna (10 samples per second) with a 16ft. cable, which is required for operation. The dimensions for the antenna are quite small (1.472 in. x 1.339 in. x 0.508 in.) allowing it to be easily hidden. The GPS antenna utilizes up to 3 GPS satellites simultaneously and samples 10 times per second
- No calibration is needed! Just wire up power, ground, and lighting, connect the antenna and you’re ready to go!
- The GPS Speedometer’s Rally Nav screen will display pertinent information such as odometer, trip odometer, date/time, GPS coordinates, directional heading, peak speed recall, 0-60 MPH, 60-0 MPH, and inclinometer (pitch and roll).
- Gauge kit includes GPS antenna, spade connectors for wiring, mounting hardware, and detailed instructions for installation
- 12 and 16 volt compatible, compatible with nearly every street car or race car electrical system
- Plug and Play, no calibration required!
- Utilizes up to 3 GPS satellites simultaneously and samples 10 times per second
Ships With
- 5283 (16 ft. 10 Hz GPS Antenna)
- Modern blue LED through-the-dial lighting provides clear visibility during nighttime use
- Features lit LCD odometer – capable of registering one-million miles with two resettable trip odometers
- Compatible with most two wire sine wave and three wire hall effect vehicle speed sensors.
- Simple push button, 2 mile drive calibration. No dip switches!
- Reprogram at any time to accommodate changes in gear ratio or wheel and tire combination.
- Gauge kit includes mounting hardware and detailed instructions for installation
Additional information
| Weight | 12 lbs |
|---|---|
| Dimensions | 24 × 14 × 10 in |
| Speedometer Options | 160 MPH Electric Speedometer, 160 MPH GPS (built in) Speedometer |
| Fuel Gauge Options | 0-90 ohms (works w/ stock sender), 240-33 ohms (works with ATM3262), 75-10 (Pre 87 Ford) |
